Product Details:
|
Floral Clock Manufacture Factory: | Good Clock (Yantai) Trust-Well Co., Ltd. | The Main Parts Of Floral Clocks: | Minute/hour Or Second Hand, Movement Motor And Master Controller |
---|---|---|---|
Technical Support: | The Detailed Installation Drawings Available | The Customs H.S.Code For Flower Clock: | 9110901000 Or 9114909000 |
Materials Of Manufacture: | Steel Panel Or Other Metal For Clock Hands, Iron Block For Movement With Brass Gears | Warranty: | 2 Years, Technical Support Forever |

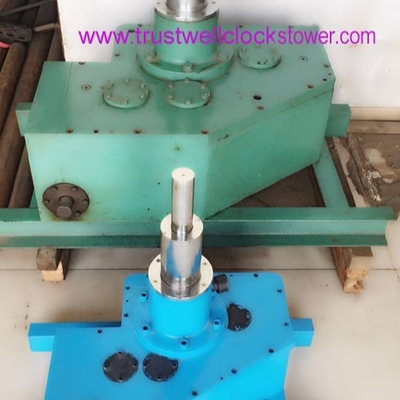

Movement series for specialty clocks
Movement available |
Size for clock diameters (m) |
materials |
Drive mode |
Suitable for |
For tower building clock with two hands | 0.6m- 10 m | Iron, brass drive gears with worm structure | Stepper motor | Tower building clock/street clock… |
For tower wall clock with three hands | 0.6m- 10 m | Iron, brass inside with worm structure drive gears | Stepper motor | Tower building clock/street clock… |

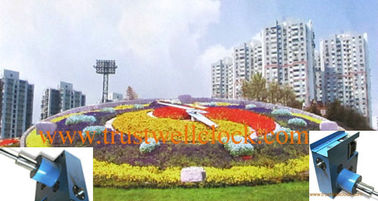

For floral clock with two hands | 3.5m – 50m | Iron, brass inside with worm structure drive gears | Stepper motor | Floral clocks, flower clock, garden clocks |
For flower clock with three hands | 3.5m – 50m | Iron, brass inside with worm structure drive gears | Stepper motor | Floral clocks, flower clock, garden clocks |
unique features: 1/high torque, lower noise 2/ fully closed- in and compact structure, self-locking ability, oiling needless 3/ Less power waste or abrasion 4/ weatherproof, maintenance-free for all its service life 5/easy for installation and much longer usage life 6/ our own special made lubricating oil 7/the movement can be used under the temperature of very hot and very cold or other bad weather condition, etc……. 8/ there’re movement items for supporting night illumination function on minute/hour hand and marks/numerals. 9/ the movement for three hands clocks over 2m diameters will work with the one motor, the second hand will work in synchronization with the minute/hour hand. 10/ there also movement items which can correct the time by movement itself at the fixed time with a position sensor.

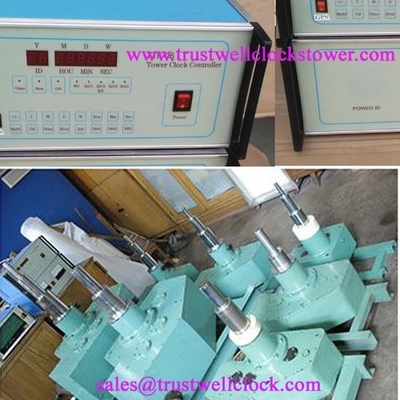

Warm Tips: the working mode of the movement is driven by its matched controller to move, buyers can use either our controller or their owns, we are glad to supply our detailed technical parameters for buyers reference to make their own electronic master controller and matched our movement. |
We make and supply variety of indoor and outdoor clocks,
and series clock parts, with good quality, welcome your
enquiries, we'll offer you quality products, reasonable prices,
and best service, thank you!
- tower clocks from 0.6-10m diameters
- floral clocks from 3.5-60m diameters
- street clocks
- movement for above clocks,
- master and slave clocks system
Locating at the birthplace of China's clock industry, we have already over 30 years' history of clock manufacture, looking forward to working with you, thank you!
